产品类型：英制圆锥滚子轴承
轴承型号:SET73
内径(d):25.400mm
外径(D):62.000mm
装配高度(T):19.050mm
内圈高度(B):20.638mm
外圈高度(C):14.288mm
重量:0.29KG
硬度:59-62HRC
保持器：压顶保持器
材质：轴承钢，GCR15
外观：精美，光亮，无划痕，无磕碰伤
包装：工业包装或单个彩盒包装
防锈：防锈质保二年
产品特点：高转速 寿命长 高精度 低噪音
临清市普菲轴承有限公司生产深沟球轴承和圆锥滚子轴承，英制圆锥滚子轴承，
产品全检。内套和外套可以互换使用，按您要求来做包装，如有需要，欢迎随时询价！

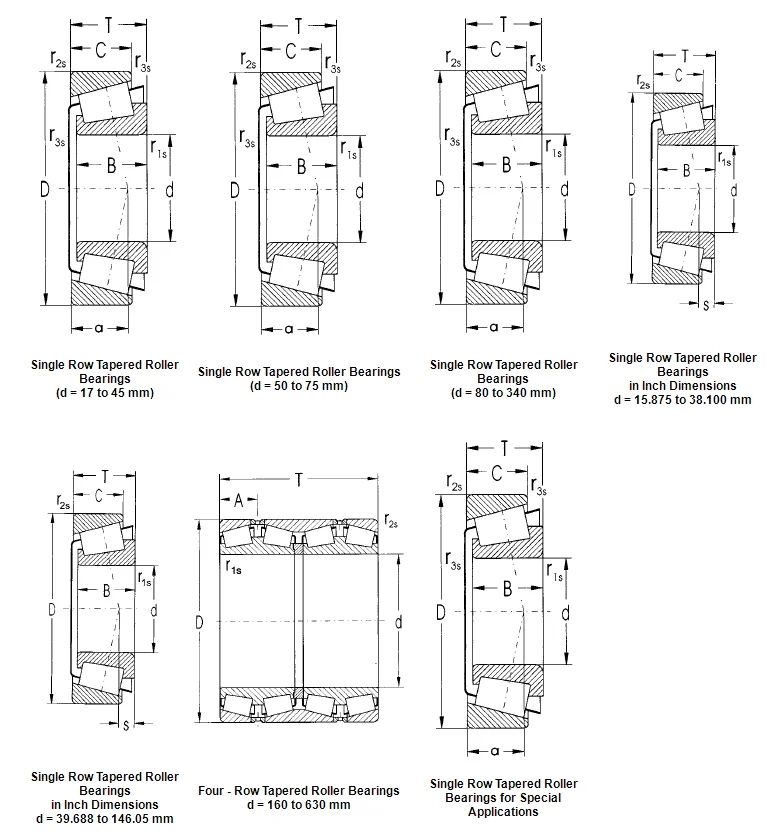

Bearing NO.	Dimensions (mm)			Weight (kg)
	d	D	B
1280/20	22.225	57.150	22.225	0.286
1755/29	22.220	56.890	19.360	0.258
1988/22	28.575	57.150	19.845	0.214
1988/32	28.575	58.738	19.355	0.220
11590/20	15.870	42.860	14.290	0.099
LM11749/10	17.462	39.878	13.843	0.087
LM11949/10	19.050	45.237	15.494	0.124
12580/20	20.638	49.225	19.840	0.165
M12649/10	21.430	50.005	17.520	0.172
LM12749/10	22.000	45.237	15.494	0.116
LM12749/11	22.000	46.000	15.494	0.121
14116/14272	30.226	69.012	19.583	0.290
14116/14274	30.226	69.012	19.845	0.350
14116/14276	30.226	69.012	19.583	0.160
14117/274A	30.000	68.956	19.845	0.340
14123A/274	31.750	69.012	26.721	0.420
14124/274	31.750	69.012	19.845	0.357
14125A/274	31.750	69.012	19.845	0.340
14124/276	31.750	69.012	19.583	0.350
14125W/283	31.750	72.085	18.583	0.450
14130/14284	33.338	71.996	19.583	0.430
14131/274	33.338	69.012	19.845	0.345
14137A/274	34.925	69.012	19.845	0.328
14138A/274	34.925	69.012	19.845	0.328
14137A/276	34.925	69.012	19.840	0.324
14138A/276	34.925	69.012	19.840	0.320
14125A/276	31.750	69.012	19.845	0.347
15101/15244	25.400	62.000	20.638	0.300
15101/245	25.400	62.000	19.050	0.290
15103S/243	26.162	61.913	19.050	0.287
15113/245	28.575	62.000	19.050	0.276
15118/15245	30.213	62.000	19.050	0.260
15118/15250X	30.213	63.500	20.638	0.290
15119/15245	30.213	62.000	20.638	0.260
15120/15245	30.213	62.000	20.638	0.290
15123/245	31.750	62.000	18.161	0.243
15126/250	31.750	63.500	20.638	0.290
15579/15520	25.987	57.150	17.460	0.211
16131/16282	33.338	72.000	20.638	0.430
16137/282	34.930	71.990	20.640	0.374
16150/282	38.100	72.000	19.000	0.330
16579/16522	31.750	68.262	22.225	0.400
17580/20	15.875	42.862	16.670	0.110
17887/31	45.230	79.985	19.843	0.402
18590/20	41.000	73.000	16.700	0.275
LM102949/10	50.000	73.431	19.558	0.321
LM104947A/10	50.000	82.000	17.000	0.432
JLM109948/10	50.800	82.000	21.500	0.419
LM104949/11A	50.800	82.550	23.622	0.442
LM104949/12	50.000	82.913	21.590	0.423
