全自动铜管缩口机
TRM Series Automatic Copper Tube Shrinking Machine
整机特性:
1. 铜管缩口机主要是针对铜铝管对焊机研发的缩口设备,可以把铜管端口缩小,插入铝管再进行焊接。也可以配套用于
毛细管的焊接缩口设备;

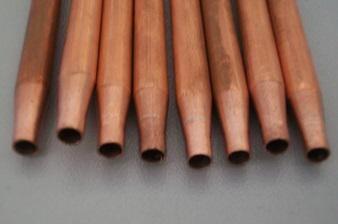

2. 该款缩口机主要用于缩小管材端口,速度快,经过高速旋转及拍打使其内、外径尺寸精准,外表光滑美观;
3. 机器体积小、重量轻、操作简单、使用方便;
4. 可根据不同尺寸要求,模具可任意更换。
技术参数
1. 电源电压:三相380VAC、50/60Hz
2. 电机功率:2.2~7.5KW
3. 缩管直径:Φ4~Φ35mm
Main Features
1. Specially designed to reduce mouth of copper tube for Copper Tube and Aluminum Tube Butt Welding machine,It shrinks mouth of copper tube to insert to Aluminum Tube,then finish welding.Also can be used to reduce mouth of capillary tube;
2. Mainly used to reduce the mouth of tubes.By high-speed rotating and flapping,the inner and outside diameter of tubes after reducing are very quite accurate,appearance is smooth and beautiful;
3. Small Volume,light weight,easy operation and good use;
4. Shrinking Mold can be replaced in accordance with different diameter requirements.
Main Technical Parameters
1、Input Voltage:380~~480VAC 、50/60Hz
2、Motor Power: 2.2~~7.5KW.(Different size of tube, need different power!)
3、Tube Diameter:Φ4~Φ35mm
